Dual-Rail Superconducting Qubit

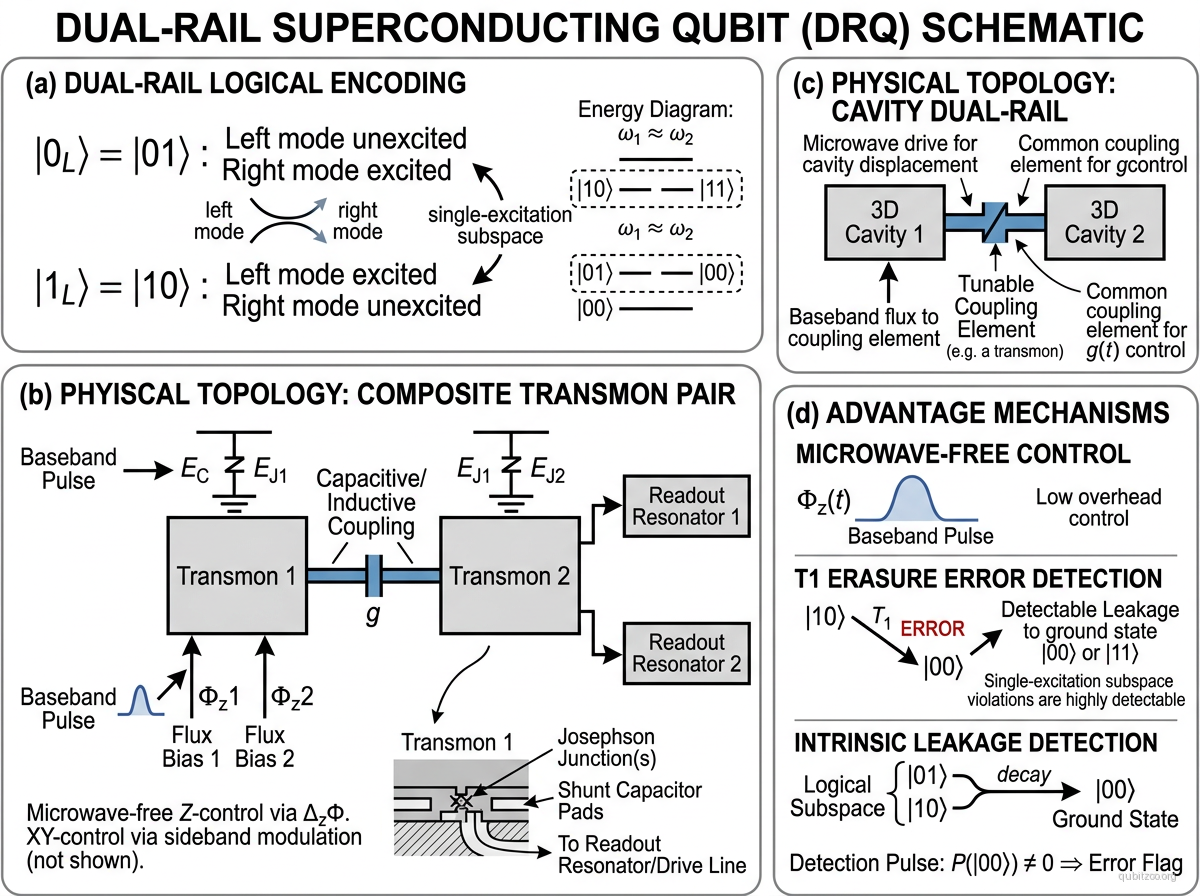

Figure

Description

The dual-rail superconducting qubit encodes quantum information in the single-excitation subspace of two superconducting modes: $|0_L⟩=|01⟩$ and $|1_L⟩=|10⟩$ in the bare-mode basis. At resonance, coupled-transmon implementations often work in the symmetric and antisymmetric eigenbasis $|\pm ⟩=(|10⟩\pm |01⟩)/\sqrt{2}$. In either basis, loss of the single excitation produces $|00⟩$, a state outside the codespace that can be detected and reported as an erasure.

The concept originates in quantum optics (a single photon across two spatial modes is the canonical photonic qubit; see dual-rail-photonic-qubit), but the specific application to superconducting circuits was proposed by Shim & Tahan (2016), who recognized that the same encoding applied to coupled transmons yields a Hamiltonian formally identical to the semiconductor singlet-triplet qubit — with the logical splitting set by mode detuning, controllable by baseband flux/voltage pulses.

The encoding has been realized in three closely related superconducting implementations:

Small-gap composite qubit (CQB) — Two capacitively coupled transmons operated around a small avoided crossing and controlled by non-adiabatic baseband pulses plus coherent Landau-Zener interference. Campbell et al. (2020) demonstrated Clifford fidelities above 99.7% without resonant microwave qubit drives.

Coupled-transmon erasure qubit — Two resonantly coupled tunable transmons form protected symmetric/antisymmetric logical eigenstates. Levine et al. (2024) demonstrated millisecond-scale codespace coherence, $2.19(2)\times 10^{-3}$ erasure probability per single-qubit gate, residual errors about 40 times smaller, and mid-circuit erasure checks adding less than 0.1% dephasing. Huang et al. (2026) scaled this approach to four dual-rail qubits and logical multi-qubit entanglement.

Cavity dual-rail — Two long-lived microwave-cavity modes are coupled through driven circuit-QED interactions with a transmon ancilla. The cavity version converts photon loss into erasures but still uses microwave drives for state preparation, beamsplitter operations, erasure checks, and readout. Chou et al. (2024) demonstrated 0.01%-level logical SPAM error and detected more than 99% of cavity-decay events; de Graaf et al. (2025) later demonstrated a hardware-efficient mid-circuit erasure check using joint-photon-number splitting.

Key advantages of the dual-rail encoding:

• Erasure detection: The encoded subspace $\{|01⟩,|10⟩\}$ has exactly one excitation. Any $T_1$ decay produces $|00⟩$, which is outside the codespace and detectable — converting the dominant error channel into an erasure. The double-excitation state $|11⟩$ is also outside the codespace and detectable, but is reached by excitation errors (heating, gate errors), not by $T_1$ relaxation.
• Microwave-free control (CQB): In the transmon-pair implementation, all single-qubit gates are performed by baseband (DC) flux pulses that detune the two transmons, eliminating the need for microwave generators, mixers, and filters per qubit.
• Super-semi compatibility: The encoding is especially natural for variable-junction qubits (gatemons, super-semi junctions) where junction tunability replaces flux tunability.
• QEC efficiency: Because an erasure reveals its location, a distance-$d$ code can ideally correct up to $d-1$ erasures, compared with only $\lfloor (d-1)/2\rfloor$ arbitrary Pauli errors. Real hardware gains depend on the erasure-check and residual-Pauli error budgets.

Hamiltonian

Transmon-pair encoding

$H=\frac{{\omega }_1}{2}{\sigma }_z^{(1)}+\frac{{\omega }_2}{2}{\sigma }_z^{(2)}+g({\sigma }_{+}^{(1)}{\sigma }_{-}^{(2)}+\text{h.c.})$

In the ordered basis $\{|10⟩,|01⟩\}$, and after dropping a common energy offset, this reduces to:

$H_{\text{encoded}}=\frac{\Delta }{2}{\tau }_z+g{\tau }_x$

where $\Delta ={\omega }_1-{\omega }_2$ is the mode detuning, $g$ is the exchange coupling, and ${\tau }_i$ act on the bare dual-rail basis. At $\Delta =0$, the eigenstates are $|\pm ⟩=(|10⟩\pm |01⟩)/\sqrt{2}$ with splitting $2g$. Detuning and exchange therefore generate rotations about two noncommuting logical axes; the exact pulse implementation differs between the small-gap CQB and the resonantly coupled erasure-qubit architecture. This is the same two-level structure exploited by singlet-triplet spin qubits, up to basis and coefficient conventions.

Cavity dual-rail encoding

For two cavity modes, a parametrically activated beamsplitter interaction has the form

$H_{\mathrm{BS}}/\hslash =g_{\mathrm{BS}}(t)e^{i\varphi }{a}^{†}b+g_{\mathrm{BS}}(t)e^{-i\varphi }a{b}^{†}.$

In the single-photon subspace this is again a controllable logical transverse interaction. The pump phase $\varphi$ selects the equatorial rotation axis; separate mode detuning supplies a logical $Z$ term. Erasure checks measure total excitation number (or an equivalent joint observable) without resolving whether the photon occupies mode $a$ or $b$, so they need not reveal the logical state.

Motivation

• Erasure advantage: Converting amplitude damping or photon loss into a located error gives the outer decoder more information than an unflagged Pauli fault.
• Microwave-free scaling (CQB): Eliminating microwave control lines removes a major bottleneck for scaling — no microwave generators, mixers, filters, or IQ calibration per qubit.
• Temperature tolerance: Baseband control may enable operation at higher temperatures where microwave thermal population is problematic.
• Cross-platform insight: The semiconductor-inspired encoding demonstrates that design principles from spin qubits can yield practical advantages in superconducting circuits.

Experimental Status

Transmon-pair CQB — Campbell et al. (2020):

• Two capacitively coupled transmons with small avoided crossing (gap < $k_{B}T$)
• Control: solely baseband pulses + Landau-Zener interference
• Average Clifford fidelity: >99.7% (randomized benchmarking)
• Coupled CQB-CQB operations demonstrated
• No microwave generators/mixers/filters needed

Cavity dual-rail proposal — Teoh et al. (2023):

• Gate-based architecture in the single-photon subspace of two superconducting cavities
• Universal state preparation, logical readout, and one- and two-qubit gates mediated by a transmon ancilla
• First-order cavity and ancilla faults designed to become detectable erasures

Coupled-transmon erasure qubit — Levine et al. (2024):

• Resonantly coupled tunable transmons, not storage cavities
• Millisecond-scale codespace coherence
• Erasure probability $2.19(2)\times 10^{-3}$ per single-qubit gate; residual errors about 40 times lower
• Mid-circuit erasure check with less than 0.1% induced dephasing per check

Erasure-detected logical measurements — Chou et al. (2024, Yale):

• Logical state preparation and measurement errors at the 0.01% level ($\sim 10^{-4}$)
• Over 99% of cavity decay events detected as erasures
• Confirmed error hierarchy: decay errors ~0.2%/μs, phase errors 6× less, bit flips ≥140× less
• First confirmation of the error hierarchy needed for efficient erasure code concatenation

Compact cavity and mid-circuit checks — Koottandavida et al. (2024); de Graaf et al. (2025):

• Double-post cavity: erasure rate $3.981(3){\mathrm{ms}}^{-1}$ and residual postselected dephasing up to $0.17{\mathrm{ms}}^{-1}$
• Joint-photon-number-splitting check: missed-erasure fraction $(9.0\pm 0.5)\times 10^{-4}$, with 2.92% erasure and 0.31% Pauli error per check

Two-qubit gates — Quantum Circuits, Inc. Team (2025 preprint):

• Approximately 500 ns cavity dual-rail entangling gate
• Residual gate infidelity below 0.1% after erasure detection and approximately 0.5% erasure per gate
• The paper title page credits the corporate team; “Mehta et al.” is arXiv metadata rather than the displayed paper byline

Multi-qubit entanglement — Huang et al. (2026):

• Four coupled-transmon dual-rail qubits with logical single-qubit gate errors on the order of $10^{-5}$ after postselection
• Logical Bell-state fidelity 98.8%; logical CNOT process fidelity 98.1% at 13% erasure rate; three-logical-qubit GHZ fidelity 93.9%
• Published in Nature Physics; the archival values supersede the earlier preprint values

Key Metrics

Metric	Value	Notes	Fidelity reference
Clifford fidelity (CQB)	>99.7%	Baseband-only control, Landau-Zener	Campbell et al. 2020
Erasure per 1Q gate (coupled transmons)	$2.19(2)\times 10^{-3}$	Residual errors ~40× lower	Levine et al. 2024
Erasure-check dephasing (coupled transmons)	<0.1% per check	Mid-circuit detection	Levine et al. 2024
SPAM error (cavity)	~10⁻⁴ (0.01%)	Erasure-detected logical measurement	Chou et al. 2024
Cavity-decay detection	>99%	Decay events assigned as erasures	Chou et al. 2024
Decay error rate	~0.2%/μs	Dominant error channel	Chou et al. 2024
Phase error rate	~6× lower than decay	Confirmed error hierarchy	Chou et al. 2024
Bit flip rate	≥140× lower than decay	Strongly suppressed	Chou et al. 2024
Missed-erasure fraction (cavity check)	$(9.0\pm 0.5)\times 10^{-4}$	Joint-photon-number splitting	de Graaf et al. 2025
Logical CNOT process fidelity	98.1%	13% erasure rate; four-dual-rail processor	Huang et al. 2026
Three-logical-qubit GHZ fidelity	93.9%	Coupled-transmon dual rail	Huang et al. 2026

Scaling Considerations

• Microwave-free advantage (CQB): Eliminates microwave generators, mixers, and filters per qubit — major simplification for large-scale systems.
• Temperature tolerance: Baseband control may enable operation at higher temperatures where microwave thermal population is problematic.
• Super-semi synergy: Gate-voltage-tunable junctions (gatemons) are a natural fit: detuning is controlled by gate voltages rather than flux, avoiding flux noise entirely.
• QEC integration: The confirmed hierarchy (erasure/decay ≫ phase ≫ bit flip) can be exploited by an outer code, but system-level benefit requires counting the erasure rate, residual Pauli faults, check-induced faults, and the cost of postselection or real-time decoding together.

References

Original proposal

• Y.-P. Shim and C. Tahan, “Semiconductor-inspired design principles for superconducting quantum computing,” Nature Commun. 7, 11059 (2016) — arXiv:1507.07923

Composite qubit (transmon-pair)

• D. L. Campbell et al., “Universal non-adiabatic control of small-gap superconducting qubits,” PRX 10, 041051 (2020) — arXiv:2003.13154

Cavity dual-rail

• J. D. Teoh et al., “Dual-rail encoding with superconducting cavities,” PNAS 120, e2221736120 (2023) — arXiv:2212.12077
• A. Koottandavida et al., “Erasure Detection of a Dual-Rail Qubit Encoded in a Double-Post Superconducting Cavity,” PRL 132, 180601 (2024)

Coupled-transmon erasure qubit

• H. Levine et al., “Demonstrating a long-coherence dual-rail erasure qubit using tunable transmons,” PRX 14, 011051 (2024) — arXiv:2307.08737
• W. Huang et al., “Logical multi-qubit entanglement with dual-rail superconducting qubits,” Nature Phys. 22, 591–597 (2026) — arXiv:2504.12099

Erasure-detected logical operations

• K. S. Chou et al., “A superconducting dual-rail cavity qubit with erasure-detected logical measurements,” Nature Phys. 20, 1454–1460 (2024) — arXiv:2307.03169
• S. J. de Graaf et al., “A mid-circuit erasure check on a dual-rail cavity qubit using the joint-photon number-splitting regime of circuit QED,” npj Quantum Inf. 11, 1 (2025)
• Quantum Circuits, Inc. Team, “Bias-preserving and error-detectable entangling operations in a superconducting dual-rail system,” arXiv:2503.10935 (2025)

Related photonic dual-rail

• E. Knill, R. Laflamme, and G. J. Milburn, “A scheme for efficient quantum computation with linear optics,” Nature 409, 46 (2001) — KLM protocol using dual-rail photonic encoding

Linked Papers

• shim-2016-semiconductor-inspired
• campbell-2020-composite-qubit
• teoh-2023-dual-rail-cavity
• levine-2024-dual-rail-erasure
• chou-2024-superconducting-dual-rail
• koottandavida-2024-double-post-dual-rail
• de-graaf-2025-mid-circuit-erasure-check
• qci-team-2025-bias-preserving-dual-rail
• grassl-1997-codes-quantum-erasure-channel
• huang-2026-logical-multi-qubit

Evergreen context

• erasure-error-vs-pauli-error — the whole point of the encoding is to turn dominant $T_1$/photon-loss events into flagged departures from the logical subspace instead of hidden Pauli faults.
• noise-bias-and-asymmetric-error-channels — the cavity and CQB variants matter because they reshape the error budget into a decoder-friendlier hierarchy, not just because they lower raw error.
• threshold-theorem — this is why the erasure conversion story is important: flagged loss can relax the physical-fidelity burden for scalable fault tolerance.

Related Entries

• dual-rail-photonic-qubit — photonic ancestor encoding
• erasure-qubit — general erasure qubit concept
• transmon — physical qubit used in both implementations
• gatemon — natural super-semi variant for CQB
• singlet-triplet-qubit — semiconductor analog (formally identical Hamiltonian)
• circuit-qed — architecture for cavity dual-rail
